Understanding Electrical Resistance
1. What Exactly is Resistance? Think of it Like a Traffic Jam for Electrons
Ever wondered what resistance actually is when talking about electricity? Well, picture this: you're trying to drive home during rush hour. All those cars are bumping and grinding, slowing you down, right? That's kind of what resistance does to electrons in a circuit. It's the opposition to the flow of electrical current.
So, if a circuit has high resistance, it's like a super congested highway — fewer electrons can squeeze through at any given moment. And if it has low resistance, it's like a smooth, open road — electrons can zoom along happily! Different materials have different levels of resistance. Copper wire, for instance, is a great conductor, meaning it has low resistance. Rubber, on the other hand, is an insulator with very high resistance, which is why it's used to coat electrical wires and keep us safe.
Resistance is measured in ohms, symbolized by the Greek letter omega (Ω). The higher the number of ohms, the more resistance there is. Now, you might be thinking, "Okay, that's cool, but why should I care?" Well, resistance is a crucial part of how circuits work. It helps control the amount of current flowing through a circuit, preventing things from overheating or short-circuiting. It's like having a volume knob for electricity!
Without resistance, circuits would be wildly unpredictable, potentially leading to all sorts of problems. Think of a lightbulb. It needs resistance to convert electrical energy into light and heat. No resistance? No light! Just a blown bulb and a whole lot of disappointment. So, the next time you flip a switch, remember the unsung hero of electricity: resistance!
Simplified Form Of 3^a 4^a 225^a + 1/9^a 12^a 15^a 2 Is
Calculating Resistance
2. Unlocking the Formula
Alright, now let's get to the juicy part: calculating resistance. This is where Ohm's Law comes in. It's a fundamental principle in electrical engineering, and it's actually pretty simple to understand. Ohm's Law states that the voltage (V) across a conductor is directly proportional to the current (I) flowing through it, with the constant of proportionality being the resistance (R). In equation form: V = IR. Easy peasy, right?
What does this mean in plain English? It means that if you know two of these values (voltage, current, or resistance), you can easily calculate the third. For example, if you know the voltage and the current, you can find the resistance by rearranging the formula to: R = V / I. This is the formula we'll be using to answer our specific question: "What is the resistance of A circuit with 20V and 2A?" (See, we got to the key term!)
So, let's break it down: Voltage (V) is measured in volts, and it represents the electrical potential difference across a circuit element. Think of it as the "push" that drives the electrons. Current (I) is measured in amperes (amps), and it represents the rate of flow of electrical charge. Think of it as the number of electrons passing a point per second. Resistance (R), as we already know, is measured in ohms and represents the opposition to the flow of current.
Ohm's Law isn't just a theoretical concept; it's used in all sorts of practical applications, from designing electronic circuits to troubleshooting electrical problems. Understanding Ohm's Law is crucial for anyone working with electricity, or even just trying to understand how your appliances work. It's the foundation upon which much of electrical engineering is built!
Solved A 20V 3.12 D 212 W 7ΩΣ 8.12 4.12 2A 512 с DA L ܀
Solving the Problem
3. Plugging in the Numbers
Okay, let's get to the heart of the matter. We're given a circuit with a voltage of 20V and a current of 2A. We want to find the resistance. Using Ohm's Law (R = V / I), we simply plug in the values: R = 20V / 2A. The result is 10 ohms.
Therefore, the resistance of A circuit with 20V and 2A is 10 ohms. It's as simple as that! Seriously, that's all there is to it. Of course, this assumes that the circuit is behaving ideally, meaning there aren't any other factors affecting the resistance. In real-world circuits, things can be a bit more complex, but this calculation gives you a solid starting point.
Imagine you're building a simple circuit with an LED and a resistor. You know the LED needs a certain current to light up properly, and you know the voltage of your power supply. Using Ohm's Law, you can calculate the appropriate resistor value to use in the circuit. If you choose the wrong resistor, you could either burn out the LED (too much current) or have it barely light up at all (too little current).
So, while this specific example of calculating the resistance of a 20V, 2A circuit may seem straightforward, the underlying principle of Ohm's Law is essential for a wide range of electrical and electronic applications. Mastering this concept will empower you to understand and troubleshoot all sorts of electrical systems.
Factors Affecting Resistance
4. Temperature, Material, and Geometry
While Ohm's Law provides a simple way to calculate resistance in ideal conditions, it's important to remember that several factors can affect the actual resistance of a circuit component. One of the most significant is temperature. For most materials, resistance increases with temperature. This is because the increased thermal energy causes the atoms in the material to vibrate more, making it harder for electrons to flow freely.
The material of the conductor also plays a crucial role in determining its resistance. As mentioned earlier, some materials, like copper and silver, are excellent conductors with low resistance. Other materials, like rubber and glass, are insulators with very high resistance. The atomic structure of the material determines how easily electrons can move through it.
The geometry of the conductor also affects resistance. A longer conductor will have higher resistance than a shorter conductor of the same material and cross-sectional area. Think of it like trying to run through a long hallway versus a short hallway. The longer the hallway, the more obstacles you'll encounter, and the harder it will be to run through it. Similarly, a thinner conductor will have higher resistance than a thicker conductor of the same material and length.
These factors mean that the actual resistance of a component in a real-world circuit can deviate slightly from the value calculated using Ohm's Law alone. This is why engineers often use more sophisticated models and simulations to accurately predict the behavior of complex circuits. However, understanding the basic principles of Ohm's Law and the factors affecting resistance is still essential for any electrical engineer or technician.

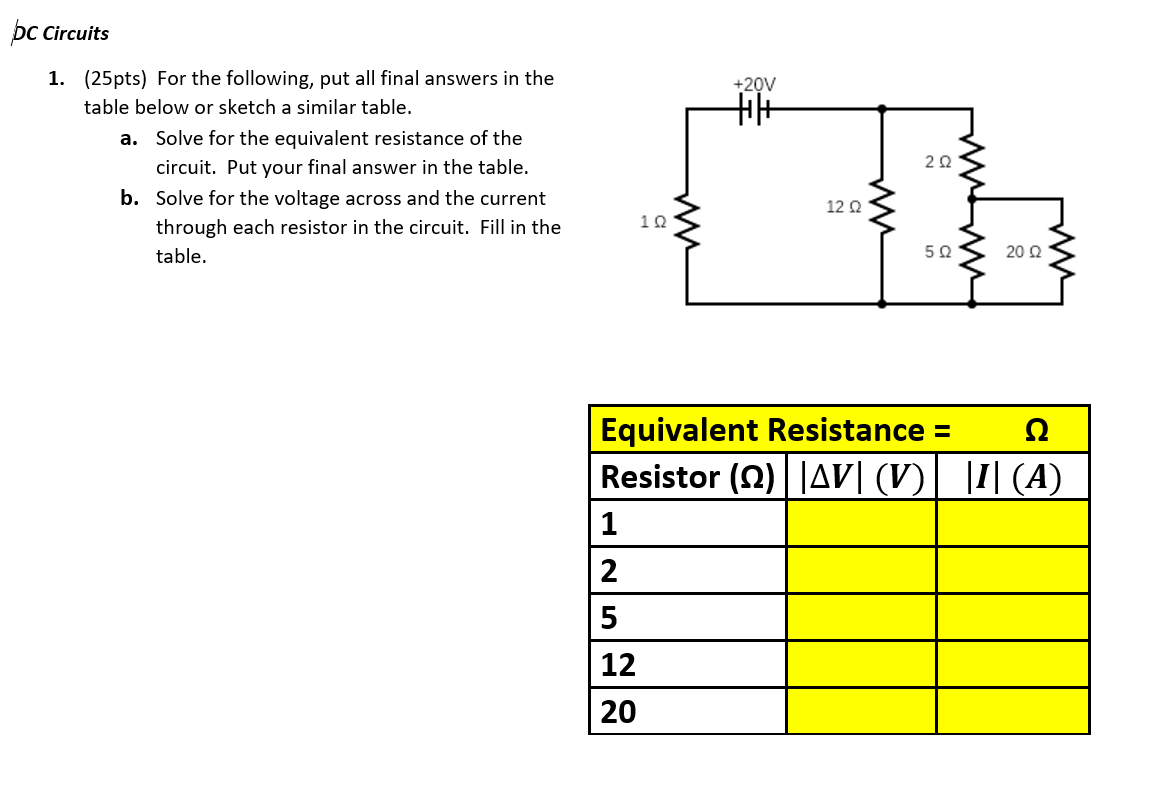

Solved DC Circuits +20V Ht 1. (25pts) For The Following, Put
Real-World Applications
5. From Toasters to Transistors
Resistance isn't just a theoretical concept confined to textbooks and classrooms. It's a fundamental property of electrical circuits that's used in countless real-world applications. Think about your toaster. The heating element in a toaster is made of a material with high resistance. When electricity flows through it, the resistance converts electrical energy into heat, which toasts your bread to golden-brown perfection.
Resistors are used in electronic circuits to control the amount of current flowing to different components. They can be used to protect sensitive components from overcurrent, or to set the operating point of a transistor. Without resistors, many electronic devices wouldn't function properly, or would be at risk of damage.
Even in something as simple as a light bulb, resistance plays a crucial role. The filament in an incandescent light bulb is made of tungsten, a material with high resistance. When electricity flows through the filament, the resistance causes it to heat up to a very high temperature, emitting light in the process. The resistance is carefully chosen to provide the right balance between brightness and lifespan.
From the smallest microchip to the largest power grid, resistance is an essential part of how electrical systems work. Understanding resistance is not only important for electrical engineers and technicians, but also for anyone who wants to understand the technology that surrounds them. So, the next time you use an electronic device, take a moment to appreciate the humble resistor, the unsung hero of the electrical world.
SOLVED The Voltage Of 4V Was Measured At Resistance After
Frequently Asked Questions (FAQ)
6. Your Burning Questions About Resistance Answered!
We get it, electrical concepts can be a little confusing. Here are some frequently asked questions to help clarify things:
7. Q
A: Resistance is a property of a specific object, while resistivity is a property of a material. Resistance depends on the material, length, and cross-sectional area of the object. Resistivity is an intrinsic property of the material itself. Think of it this way: resistivity is like the inherent difficulty of running on sand, while resistance is how difficult it is to run on a specific beach (taking into account the length and width of the beach).
8. Q
A: In most cases, resistance is a positive value, meaning it opposes the flow of current. However, there are some special electronic components, like tunnel diodes, that can exhibit negative resistance under certain conditions. This doesn't mean they "generate" electricity, but rather that the current decreases as the voltage increases over a specific range. It's a bit weird, and typically only seen in specialized applications.
9. Q
A: Good news! Resistors are generally non-polar, meaning they work the same way regardless of which direction they're placed in a circuit. So, you don't have to worry about accidentally reversing a resistor and causing a problem. This is one less thing to worry about when building your circuits!
